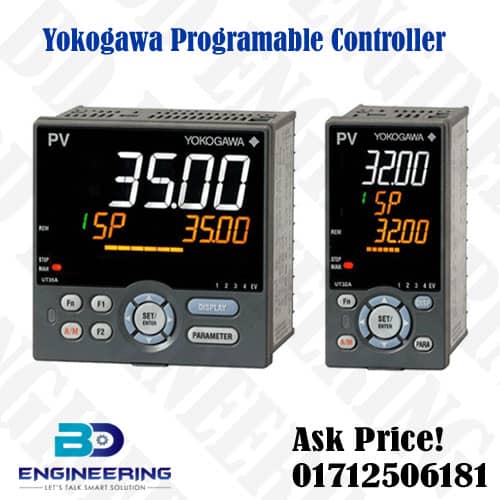

Yokogawa Programable Controller
What are the common applications for Yokogawa UP35A/UP32A programmable controllers? Yokogawa UP35A specifications. Yokogawa UP32A specifications for Yokogawa programmable controller Bangladesh price. The UP35A and UP32A lies in their physical size (DIN format) and their I/O expansion capabilities
-
Yokogawa UP35A:
- Program Patterns/Segments: Standard 2 program patterns / 20 segments. Can be optionally expanded to 4 patterns
- Digital Outputs: Supports multi-channel contact I/O, typically more than the UP32A. Standard 3 DO
- Analog Inputs: 1 Universal input (TC, RTD, mV, V, mA) standard, with options for up to 4 analog inputs.
- Communication: Offers a wider range of communication options, including RS-485, Ethernet (Modbus/TCP), PROFIBUS-DP, CC-Link, and Device Net.
-
Yokogawa UP32A:
-
- Size: 1/8 DIN (48mm x 96mm panel cutout). This is a more compact form factor, ideal for space-constrained panels.
- Program Patterns/Segments: Also, standard 2 program patterns / 20 segments, optionally expandable to 4 patterns / 40 segments
- Digital Outputs: The UP35A due to its smaller size. Standard 3 DOs, with an option for 2 additional DOs (total 5).
Common Features of UP35A and UP32A:
- Control Modes: ON/OFF, 3-position, PID (Continuous, Time-proportional), Heating & Cooling, etc.
- Ladder Sequence Function: Included as standard, allowing for simple logic control in addition to program patterns.
- Display: Easy-to-read, 14-segment large color LCD display with navigation keys and scrolling text.
- Advanced Control: Fuzzy logic control.
- Universal Input: Accepts various sensor types (Thermocouple, RTD, mV, V, mA) on its main input.
