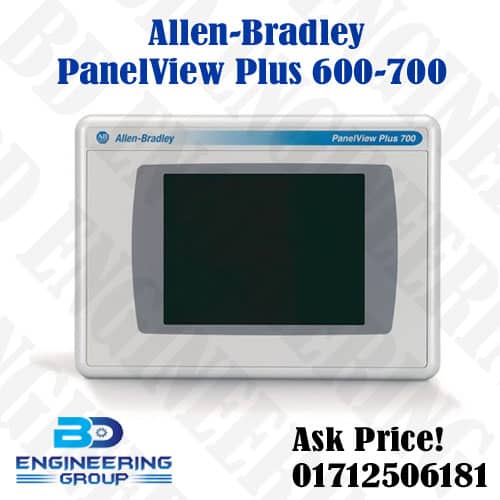

Allen-Bradley PanelView Plus 700
The Allen-Bradley HMI Model of 2711P-T7C4D8 is a Human-Machine Interface (HMI) from Rockwell Automation. It is specifically a PanelView Plus 6 700 Graphic Terminal.
Technical Specification:
| Specification | Detail |
| Full Model |
PanelView Plus 6 700 Terminal
|
| Catalog Number |
2711P-T7C4D8
|
| Display Size |
6.5-inch Diagonal (Note: The “700” model is sometimes colloquially called a 7-inch, but the official diagonal size is 6.5 inches)
|
| Display Type |
Color Active-Matrix TFT (Thin-Film Transistor) LCD
|
| Resolution |
640 x 480 pixels (VGA) with 18-bit color graphics
|
| Input Type |
Touch Screen (Analog Resistive)
|
| Communication |
Standard (Ethernet 10/100Base-T, RS-232, and Two (2) USB Host ports)
|
| Power Input |
DC24 V
|
| Memory |
512 MB RAM / 512 MB Flash
|
| Operating System |
Windows CE 6.0 (Standard features, without extended features/file viewers)
|
| Software |
Configured using FactoryTalk View Machine Edition software
|
