Omron Incremental Encoder Module

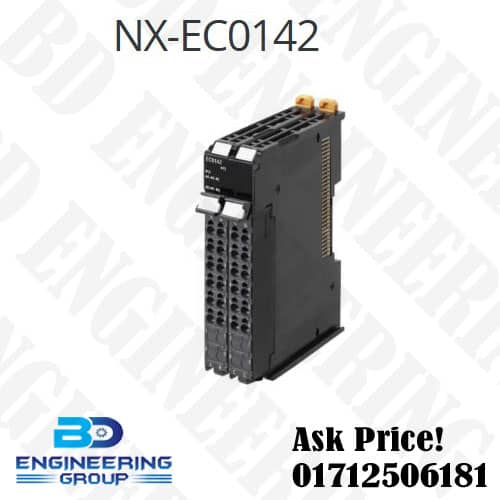

The Omron NX-EC0142 is an incremental encoder input unit for the Omron NX I/O System. It is designed to be a high-speed, compact module for precisely reading position information from incremental encoders.
Technical Details:
- Function: Incremental Encoder Input Unit.
- Input Type: 1 channel, with a line driver (RS-422) input type.
- Compatibility: The Omron NX I/O System and can be synchronized with an EtherCAT network for high-speed, deterministic control.
- High-Speed: Capable of reading encoder signals at a maximum frequency of 4 MHz.
- Other Features: Supports various pulse input methods (phase difference, pulse + direction, up/down pulse) and has a built-in 32-bit counter.
Product Application Status:
The Omron corporation NX-EC0142 is an active product. It is a current and essential component of the NX I/O series, which is part of Omron’s modern Sysmac automation platform.
