Dual IGBT module FF600R06ME3 Socomec ups

The Infineon FF600R06ME3 is a high-power Dual IGBT Module used as the core switching component in industrial applications, including the power conversion stage of high-capacity Uninterruptible Power Supplies (UPS) like the Socomec QB710.

Infineon FF600R06ME3 Specifications

The FF600R06ME3 is part of Infineon’s EconoDUAL module family, which is known for its high power density and reliability. The Socomec QB710 is a likely component or internal designation within a Socomec DELPHYS MX, MASTERYS, or similar high-power UPS system.

Application in Socomec UPS (QB710)

Function: These Dual IGBT modules are arranged to form the main inverter bridge. A standard 3-phase inverter requires three such dual modules
Purpose: The FF600R06ME modules are responsible for converting the high-voltage DC power from the UPS to battery bank

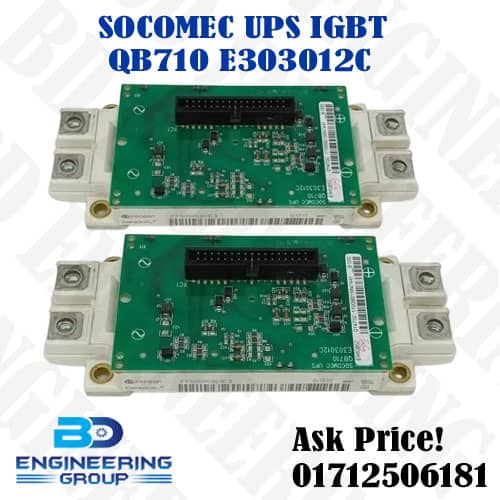

Model QB710 E303012C: The Inverter Power Module Assembly used in a particular Socomec UPS model.
