IPM – Intelligent Power Module PSS20S51F6
The PSS20S51F6 is an Intelligent Power Module (IPM) manufactured by Mitsubishi Electric. The Suitable for AC 100~240Vrms (DC voltage: 400V or below) class low power motor control, inverters, UPS (Uninterruptible Power Supply), and industrial automation.
Technical Specification:
- Type: Mini Dual-In-Line Package Intelligent Power Module (DIPIPM).
- Function: Designed for 3-phase DC/AC inverter applications.
- Voltage Rating (Vces): 600V.
- Current Rating (±Ic): 20A.
- Integrated Features:
- Control supply under-voltage (UV) protection for P-side and N-side.
- Short circuit protection (SC) for N-side IGBT.
- Fault signaling output corresponding to SC fault (N-side) and UV fault (N-side supply).
- Temperature output: Outputs LVIC (Low Voltage Integrated Circuit) temperature as an analog signal.

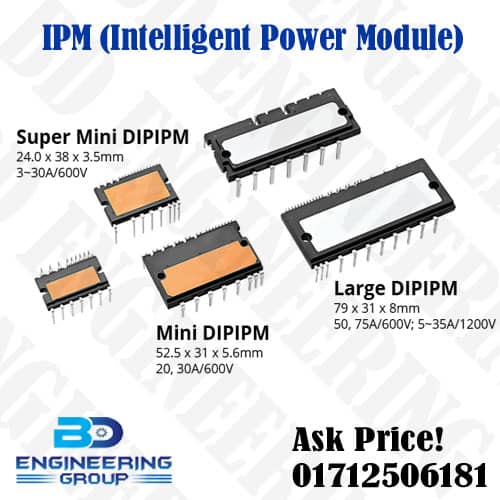

- Package: Transfer molding type, insulated type, Mini DIPIPM.
- Applications: Suitable for AC 100~240Vrms (DC voltage: 400V or below) class low power motor control, inverters, UPS (Uninterruptible Power Supply), and industrial automation.
The Intelligent aspect comes from the inclusion of the gate drive circuitry and protection features within the module itself, simplifying the overall system design.
