Mitsubishi Analog Input FX5-8AD Module Pt100/Ni100/K/J/T/B/R/S

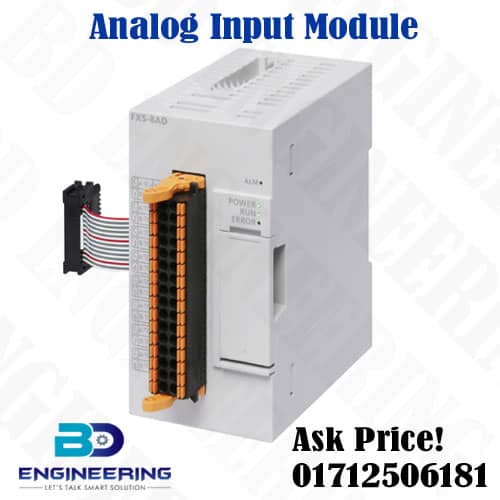

The Mitsubishi Electric FX5-8AD is a powerful and versatile analog input module specifically designed for the MELSEC iQ-F series FX5U/FX5UC PLCs. Its key strength lies in its ability to handle a wide range of analog signal types, including various thermocouple and RTD sensors, making it ideal for diverse temperature and analog measurement applications.
Specifications:
- PLC Compatibility: Exclusively for the Mitsubishi MELSEC iQ-F series (FX5U/FX5UC) compact PLCs.
- Number of Channels: 8 integrated analog input channels.
- Universal Input Types: This is a major advantage of the FX5-8AD.
- Voltage Inputs: -10V to +10V, 0V to 10V, 0V to 5V, 1V to 5V DC.
- Current Inputs: -20mA to +20mA, 0mA to 20mA, 4mA to 20mA DC.
- Resistance Temperature Detectors (RTD): Supports common 3-wire RTDs like Pt100 and Ni100.
- Thermocouples: Supports a wide range of thermocouple types including K, J, T, B, R, S.
- High Resolution:
- Voltage/Current: Typically, 16-bit signed binary output
- RTD/Thermocouple: High resolution for temperature measurement for Pt100/Ni100).
- Programming Software: The Mitsubishi’s GX Works3 software (for FX5 series). Dedicated instructions simplify reading analog values and converting them to engineering units.
Industrial Applications:
- Temperature Control Systems: Ovens, furnaces, extruders, chillers, and HVAC systems using RTDs or thermocouples.
- Process Monitoring: Measuring pressure, flow, level, and other process variables using transmitters with voltage or current outputs.
- Industrial Machinery: Feedback from various analog sensors for machine control and diagnostics.
- Energy Management: Monitoring power consumption or environmental parameters.
- Data Logging: Collecting real-time analog data for analysis and historical trending.
Availability and Price in Bangladesh:
The Mitsubishi FX5-8AD is a current and commonly used module within the MELSEC iQ-F series, so it is readily available in Bangladesh. To Authorized Mitsubishi Electric Distributors are Prices are subject to change due to import duties, supplier margins, and stock availability. It’s highly recommended to request a direct quotation from reputable local suppliers for the most accurate and up-to-date pricing.
