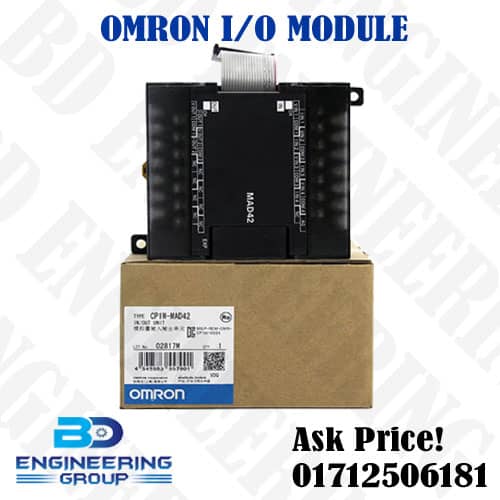

Omron CP1W-MAD42 I/O Expansion unit
Omron Corporation CP1W-MAD42 IO expansion unit 4 x analog inputs and 2 x analog outputs. The Omron CP1W-MAD42 is an Analog Input/Output Expansion Unit designed for use with the Omron CP1L and CP1E series of Programmable Logic Controllers (PLCs).
Technical Specification:
- Analog Inputs: 4 channels
- Analog Outputs: 2 channels
Analog Inputs (4 Channels):
- Input Types Supported:
- -10 to 10 V
- 0 to 10 V
- 0 to 20 mA
- 0 to 5 V
- 1 to 5 V
- 4 to 20 mA
- Resolution: 1/6000 (14 bits)
Analog Outputs (2 Channels):
- Output Types Supported:
- -10 to 10 V
- 0 to 10 V
- 0 to 20 mA
- 1 to 5 V
- 4 to 20 mA
- Resolution: 1/6000 (14 bits)
Summery:
The CP1W-MAD42 allows your Omron CP1L or CP1E PLC to interface with analog signals from sensors and control analog output devices like valves or actuators. It provides a good balance of analog input and output channels in a single compact unit.
