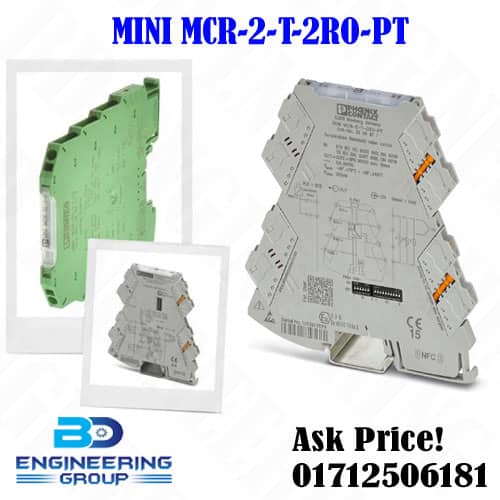

Phoenix Contact TC Temperature MINI MCR-2-T-2RO-PT
The Phoenix Contact Universally Configurable TC Temperature MINI MCR-2-T-2RO-PT, with item number 2906877, is a universally configurable temperature limit value switch from the MINI Analog Pro series. It features two transistor outputs and is designed for connecting 2, 3, and 4-conductor resistance thermometers (RTDs) and thermocouples (TCs).
Technical key features:
- Input: Accepts signals from various type of RTDs (Pt, Ni, Cu) and thermocouples (B, E, J, K, N, R, S, T, L, U, A-1, A-2, A-3, M, L).
- Configuration: Can be configured via DIP switches. and free software solutions, or a smartphone app using NFC communication.
- Outputs: Two normally open (N/O) transistor outputs for switching based on configured temperature limits. Maximum switching voltage is 30 V DC, and the maximum switching current is 100 mA (at 30 Vdc).
- Power Supply: Requires a nominal supply voltage of 24 Vdc (range 9.6 V DC to 30 VDC).
- Isolation: Features of Rated insulation voltage of 300 Vrms and a test voltage of 3 kV AC (50 Hz, 60 s).
- Additional Features: Fault monitoring, NFC communication, and LED status indicators.
