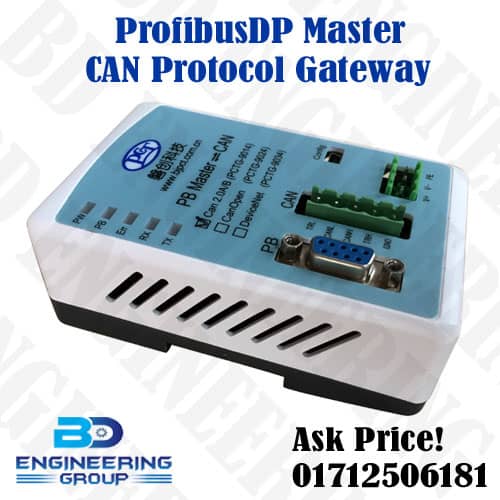

ProfibusDP Master CAN Protocol Gateway PCTG-9014

ProfibusDP Master to CAN Protocol Gateway

• Product Model: PCTG-9014 (Canbus 2.0 A/B)
• Product Model: PCTG-9024 (CanOpen)
• Product Model: PCTG-9034 (DeviceNet)
• Purpose: The PROFIBUS bus side and PROFIBUS slave devices to connect to the CAN network

DeviceNet networks:

• Uses a 32-bit micro-controller with a frequency up to 80MHz.
• Supports communication with Profibus DP-V0 slave stations
• Profibus transmission rate up to 3Mbps, CAN transmission rate up to 1Mbps
• Profibus and CAN signals have a 2500Vrms high-speed magnetic coupling isolation
• Profibus, CAN, and power supply terminals are electrically isolated, and all three ports have 600W lightning and surge protection capabilities

Summery:

This Profibus to CAN protocol conversion gateway is used for conversion between Profibus DP protocol and CAN, CANOpen, and DeviceNet protocols. The gateway acts as a master station on the Profibus bus side Profibus slave devices (such as DP protocol meters, E+H flow meters, etc.)
