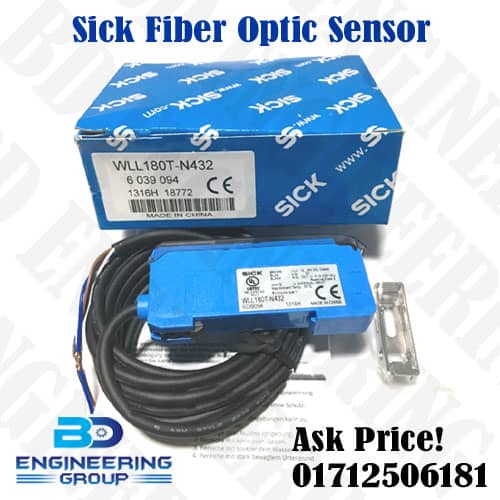

Sick Fiber Optic Sensor WLL180T-N432
The SICK WLL180T-N432 is a high-performance fiber optic sensor/amplifier. This sensor is part of the SICK WLL180T family, known for high-resolution signal processing and excellent performance for detecting small, fast, or transparent objects, especially when paired with the corresponding LL3 fiber optic cables. It supports various Teach-in modes for easy setup.
Technical Specifications:
| Manufacturer | SICK |
| Model Number | WLL180T-N432 |
| Device Type | Fiber-optic amplifier (Stand-alone unit) |
| Part Number | 6039094 |
| Supply Voltage (UB) | 12 V DC…24 V DC |
| Output Type | NPN |
| Switching Output | 1 (NPN) |
| Connection | Cable, 4-wire (typically 2m PVC cable) |
| Switching Mode | Light/Dark switching (manually selectable) |
| Light Source | LED, Visible Red Light (Wavelength: 650 nm) |
| Sensing Range (max) | Up to 20 m (Through-beam system with appropriate fiber) |
| Sensing Range (Proximity) | 0 mm…1,400 mm (with appropriate fiber, e.g., LL3-DK06, at 8 ms response time) |
| Response Time | Selectable: ≤16 μs (High Speed) to ≤8,000 μs (Super Long) |
| Switching Frequency | Selectable: 31.2 kHz to 62.5 Hz |
