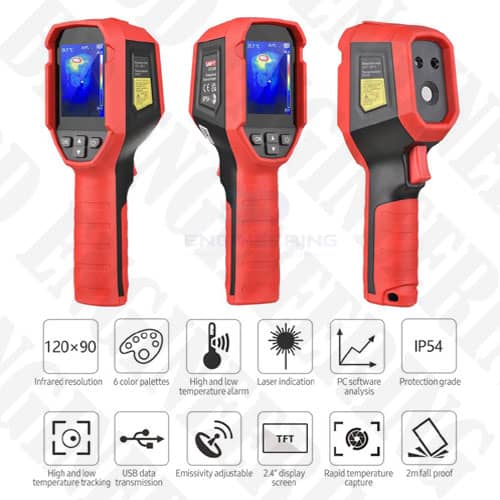

UNI-T Infrared Thermal Imager UTi260A for Industrial application

UNI-T Infrared Thermal Imager UTi260A for Industrial application

The UNI-T Infrared Thermal Imager UTi260A Camera 25Hz, Which is Resolution 256×192 for PCB Circuit Industrial Testing Floor Heating also Imager. The UNI-T UTi260A is an infrared thermal imager designed for a range of industrial applications. Thermal, Visual image, Fusion, and Picture-in-Picture (PIP) for comprehensive analysis.

Technical Features:

• Infrared Resolution: 256 x 192 pixels, providing detailed thermal images.
• Temperature Measurement Range: suitable for various industrial inspections. Some listings mention up to 440°C.
• Thermal Sensitivity (NETD): <50mK, allowing it to detect small temperature differences.
• Image Modes: Thermal, Visual image, Fusion, and Picture-in-Picture (PIP) for comprehensive analysis.
• Color Palettes: 7 options
• On-screen Analysis: Offers up to 3-point temperature measurements.
• PC Software Analysis: Included software enables in-depth image analysis and report generation on a computer, with real-time image projection.
• Data Communication: Type-C USB for data transfer and real-time image projection.
• Storage: 32GB Micro SD card for storing captured images.
• Battery: Rechargeable Li-ion battery (5000mAh) with a usage time of 7-9 hours and a charging time of less than 5 hours.
• Durability: IP65 rating for dust and water resistance, and 2-meter drop test for ruggedness.

Industrial Applications:

• Features: The UTi260A is well-suited for a wide range of industrial applications, including:
• Electrical Maintenance: Inspecting electrical panels, connections, and motors for overheating components.
• Mechanical Maintenance: Identifying faults in motors, bearings, pumps, and other rotating equipment.
• HVAC/R: Detecting insulation issues, air leaks, and malfunctioning components in heating, ventilation, air conditioning, and refrigeration systems.
• Building Diagnostics: Identifying thermal bridges, insulation deficiencies, and moisture intrusion in buildings.
• Automotive Maintenance: Diagnosing engine overheating, exhaust system leaks, and electrical problems.
• PCB Inspection: Detecting faulty components and thermal issues on printed circuit boards.

Overall Summery:

The UNI-T UTi260A appears to be a capable and cost-effective infrared thermal imager suitable for a variety of industrial applications in Bangladesh. Its good resolution, wide temperature range. When purchasing in Dhaka, Dhaka Division, Bangladesh, ensure you are buying from a reputable supplier and check for local warranty and support.
