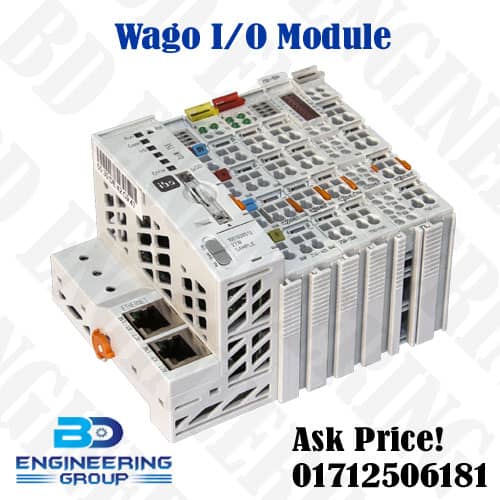

Wago Digital Output Module

The WAGO 750-1504 is a high-density, 16-Channel Digital Output Module designed for the modular WAGO I/O System (Series 750). The WAGO 750-1504 is a high-density, 16-channel digital output module designed for the WAGO I/O System 750.

Wago 16-Channel 750-1504

It is one of the most space-efficient modules in the lineup, providing 16 outputs in a housing only 12 mm wide. This module is DC loads such as relays or status indicators directly from a PLC or fieldbus coupler.

Summery:

Because there are 16 outputs in such a small space, the module uses a high-density terminal block layout. All 16 channels share a common 24V power supply provided via the power jumper contacts (the internal bus bars of the I/O assembly).
