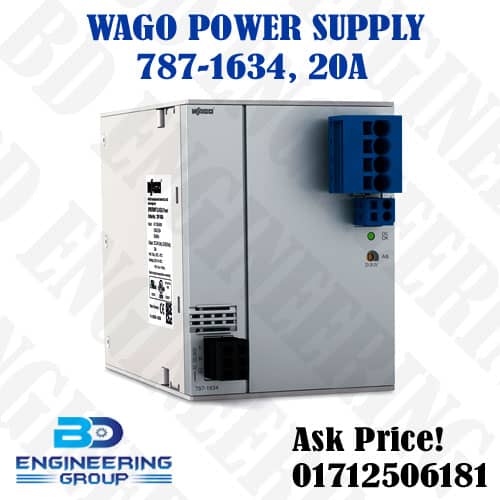

WAGO 787-1634 AC/DC Power Supply (PSU) 20A
The WAGO 787-1634 is a high-performance, single-phase, switched-mode AC/DC power supply. The WAGO EPSITRON® CLASSIC Power series, designed for industrial applications.
Technical Specifications:
- Input: It has a universal input that can accept both AC and DC voltages.
- AC Input Voltage Range: 85 to 264 VACS
- DC Input Voltage Range: 120 to 372 VDC
- Output: It provides a single, adjustable DC output.
- Output Voltage: 24 VDC (adjustable from 23 VDC to 28.5 VDC)
- Output Current: 20 A
- Output Power: 480 W
Features:
- DC OK Contact: A potential-free contact that indicates the status of the output voltage, which is useful for remote monitoring.
- High Efficiency: With an efficiency of up to 92%, it minimizes power loss and heat generation.
