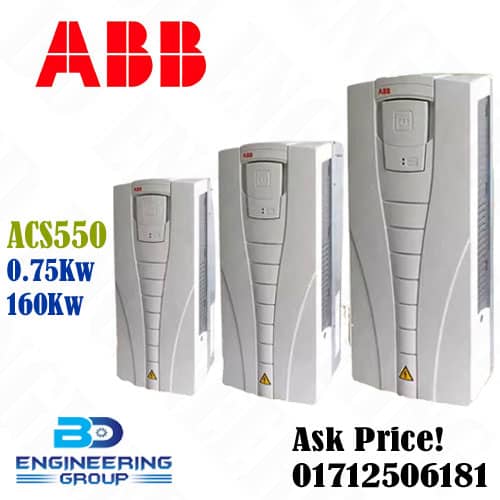

ABB ACS550 AC Inverter-VFD Drive
The ABB ACS550-01-290A-4 is a versatile and user-friendly AC inverter or Variable Frequency Drive (VFD) belonging to the ACS550 series, which is part of ABB’s general-purpose drive offerings. The ABB ACS550 132kW/160kW AC Inverter-VFD Drive ACS550-01-290A-4.The ABB VFD is a versatile and user-friendly AC inverter or Variable Frequency Drive
General Specifications:
- Model: ACS550-01-290A-4 (3AUA0000026919)
- Power Rating: It is designed for motors with a power rating of 160 kW (Normal Duty) and 132 kW (Heavy Duty).
- Output Current: The nominal output current (In) is 290 A for normal duty and 246 A for heavy-duty applications.
- Input Voltage: 3-phase, 380-480 V AC, 47.5 to 63 Hz.
- IP Rating: IP21, meaning it is protected against vertically falling water drops and solid objects greater than 12 mm.
- EMC Filter: Built-in C2 EMC filter, suitable for industrial or restricted domestic environments.
- Control Panel: Supplied with an Assistant Control Panel (operator keypad).
- Control Methods: Supports both V/Hz control and Sensorless Vector Control.
- Braking: Built-in braking chopper for dynamic braking (external braking resistor is optional).
- Communication: Built-in Modbus RTU interface.
- Input Output: 2 Analog Inputs, 6 Digital Inputs, 2 Analog Outputs, 3 Relay Contact Sets
Dimensions of Size:
- Height: Approximately 979 mm or 1090 mm
- Width: Approximately 302 mm or 550 mm.
- Depth / Length: Approximately 400 mm or 410 mm.
- Weight: Approximately 76 kg or 80 kg.
Key Features and Benefits:
- Easy to Use: Designed for simple installation, configuration, and commissioning.
- Energy Efficiency: Helps reduce energy consumption by controlling motor speed according to demand.
- Integrated Features: Includes EMC filtering, braking chopper, and communication interface.
- Harmonic Reduction: Features a swinging choke for improved power quality.
- Coated Boards: Suitable for harsh environments with coated circuit boards.
Availability in Bangladesh:
Through ABB’s authorized distributors and industrial automation suppliers in Dhaka, Dhaka Division, Bangladesh. You can contact companies specializing in industrial drives and controls for pricing and availability
