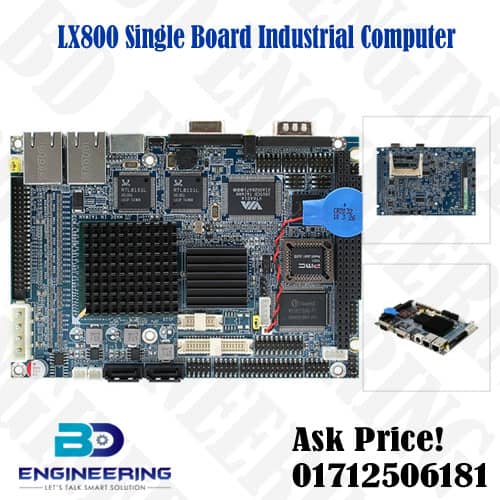

ECM-LX800W Single Board Industrial Computer
The ECM-LX800W is 3.5-inch Single Board Computer (SBC) systems. It is designed for industrial applications, featuring the AMD Geode LX800 processor. The AMD Geode LX800 processor itself is an older, lower-power embedded processor that was widely used in industrial and thin-client applications.
Features of the ECM-LX800W:
- Processor: Onboard AMD Geode LX800 @ 0.9W 500MHz with 128KB L2 Cache.
- Chipset: AMD Geode LX800 / CS5536.
- System Memory: One 200-pin SODIMM socket supporting up to 1GB DDR 333/400 SDRAM.
- Graphics: Integrated AMD Geode LX800 graphics engine.
- Display Interfaces: Supports dual display via CRT (up to 1920×1440) and LVDS (18-bit single-channel, optional 24-bit, up to 1600×1200).
- Storage:
- One CompactFlash (CF) Type I/II Socket for solid-state storage.
- 2 x SATA II ports.
- 1 x EIDE (Ultra DMA 100) connector (44-pin).
- Expansion:
- 1 x PC/104 slot for legacy industrial expansion cards.
- Network (LAN): Dual Realtek RTL8101L 10/100Base-TX Fast Ethernet controllers (RJ-45 ports).
- Audio: Realtek audio ALC203 AC97 Audio codec with Mic-in, Line-in, Line-out.
- I/O Ports:
- Serial Ports (COM): 4 x COM ports (3 x RS-232, 1 x RS-232/422/485 selectable).
- USB: 4 x USB 2.0 ports.
- Parallel Port (LPT): 1 x LPT port.
- GPIO: 16-bit General Purpose I/O (DI/DO).
- PS/2: 1 x PS/2 port for keyboard & mouse.
- IrDA: 1 x IrDA.
- BIOS: Award 4Mbit Flash BIOS of ECM-LX800W Single Board Industrial Computer
- Power Requirement: +5V and +12V (for LVDS inverter). Supports AT/ATX power types. Low power consumption.
- Fanless Operation: Yes, due to its low-power CPU, it can operate without a fan, enhancing reliability and reducing noise/dust ingress.
- Dimensions: 3.5″ form factor (approx. 146mm x 101mm).
- OS Support: Designed to support older embedded operating systems like Windows XP/XP Embedded, Windows 2000, and Windows CE
Summery of IPC
The ECM-LX800W’s features make it suitable for various embedded and industrial applications, fanless design, and support for legacy interfaces. Software programmable, 1 sec to 255 min (and 1 sec or 1 min/step). Essential for system reliability in industrial settings.
