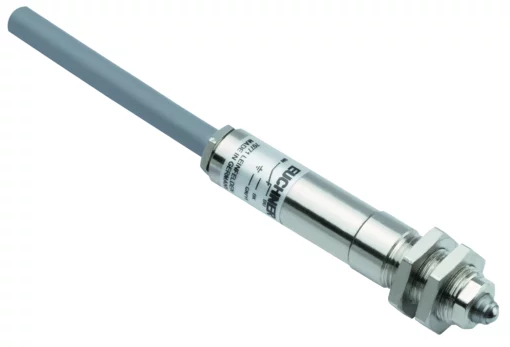

Euchner Proximity Switch EGT1 5000 price in Bangladesh. BD Engineering Solution now providing this EGT1 Proximity Switch. For more information please contact us. We are the best industrial automation spare parts importer in Bangladesh our service always help you out when you are in a problem with any future query please let us know we always try to solve our customer problem as soon as possible. We are 24/7 available on our BD Engineering Solution Facebook page.
Euchner Proximity Switch EGT1 5000 Specification
Electrical connection ratings | |
Connection cross-section | 0.5 mm² |
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 2.5 kV |
Short circuit protection according to IEC 60269-1 | 2A gG |
Switching current | |
min. at 24 V | 10 mA |
Switching voltage | |
min. | 12 V |
Utilization category | |
AC-15 | 0.5A 230V |
DC-13 | 0.6A 24V |
Mechanical values and environment | |
Approach speed | 0.01 … 8 m/min |
Number NC contacts | 1 |
Number of NO contacts | 1 |
Connection | PUR cable |
Degree of protection | IP67 |
Design | Thread M14 x 1 |
Material | |
Sleeve | Brass, nickel plated |
Threaded section | Brass, nickel plated |
Contact | Silver alloy, gold plated |
Actuating element | Ball plunger |
Actuating force | |
approx. | 20 N |
Mechanical life | 1 x 10⁶ |
Installation Orientation | any |
Switching principle | Snap-action switching contact |
Cable length | 5 m |
Cable ambient temperature (static) | -25 … +80 °C |
Repeat accuracy (absolute) | ±0.01 mm |
