Parker SSD Encoder Card AH387775U001 591P Series

Parker SSD Encoder Card

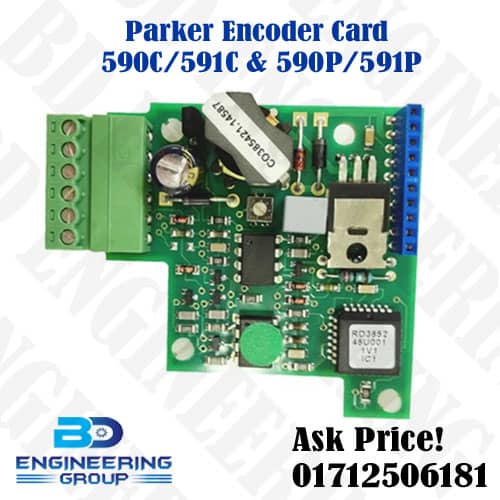

The Parker Wire-ended Encoder Card AH387775U001is an accessory board for the Parker SSD 590P and 591P Series DC Drives (as well as older 590 series drives).

Here are the key details:

• Function: The Encoder Feedback Card or Encoder Receiver Board that allows an incremental encoder to be connected directly to the DC motor controller.
• Compatibility:
  • 590P (or 590+) series (4-Quadrant, Regenerative)
  • 591P (or 591+) series (2-Quadrant, Non-Regenerative)
  • It is designed for use with Parker SSD DC Drives

Typical for the Encoder Receiver Option):

• Maximum Input Frequency: 100kHz per channel.
• Minimum Differential Input Voltage: 2.5V.
• Maximum Differential Input Voltage: 30V.

Summery:

Parker Hannifin SSD Drives Division (formerly known as SSD Drives, Eurytherm Drives, and Shackleton System Drives).
